STEMI and STEMI Equivalents, i.e. Who Needs the Cath Lab Now!

1. The ACC/AHA Criteria (1) (2)

ST-elevation in 2 contiguous leads that is:

  • Men < 40: 2.5 mm ST-elevation in V2 or V3, 1 mm in any other lead

  • Men > 40: 2.0 mm ST-elevation in V2 or V3, 1 mm in any other lead

  • Women: >1.5 mm ST-elevation in V2 or V3, 1 mm in any other lead

STEMI's have a 90-minute door-to-balloon time mandate from the Center for Medicare Services (CMS).

  • False positives: left ventricular hypertrophy, left ventricular aneurysm, benign early repolarization, brugada, pericarditis, LBBB, ventricular paced rhythm

  • False negatives: subtle ST-elevation, ST-depression with ongoing symptoms, difficult ECGs, STEMI equivalents.

Anterolateral STEMI, note reciprocal depressions in III and aVF, Culprit artery LAD. http://lifeinthefastlane.com/ecg-library/anterior-stemi/

Inferior STEMI, ST-elevation in II, III, aVF, ST-depression in I, aVL. http://cdn.lifeinthefastlane.com/wp-content/uploads/2011/10/inf3.jpg

Lateral STEMI, ST-elevation I, aVL, also V5, V6, ST-depression II, III, aVF, and V1, V2, V3 (posterior extension?). http://cdn.lifeinthefastlane.com/wp-content/uploads/2011/10/lateral-MI-1st-diagonal.jpg

Tricky case from Dr. Stephen Smith’s ECG blog (5):

M in 40s, CAD w/1 stent, 2 hr CP, radiates to elbows with walking, pain free at presentation, initial Trop .02. Initial ECG is as below:

Interpretation: <1mm ST-elevation inf. leads, ST-depression in aVL! http://hqmeded-ecg.blogspot.com/2015/06/unstable-angina-still-exists-beware.html?m=1

4 hrs after symptom onset, trop 2 is 0.42, pain free, ECG 2:

6 hrs later, pain returns and the patient gets a 3rd EKG:

Interpretation: ST-elevation II, III, aVF, ST-depression I, aVL, RCA occlusion. http://hqmeded-ecg.blogspot.com/2015/06/unstable-angina-still-exists-beware.html?m=1

Lesson? Don't fear the repeat EKG.

The ACC/AHA Criteria Summary

  • V2/V3 cut off varies by age/gender

  • Use the T-P segment for measuring ST deviation

  • Only 70% sensitive and 85% specific for acute coronary occlusion

  • aVL ST-depression may occur in inferior MI before inferior ST-elevation

2. New Left Bundle Branch Block (LBBB)

New LBBB alone is no longer an indication for emergent PCI per the 2013 guidelines. You should consider emergent PCI for LBBB in 3 situations:

1.) Unstable patient (hypotension, pulmonary edema, electrical instability) (3

2.) The Sgarbossa criteria satisfied (4) (5)

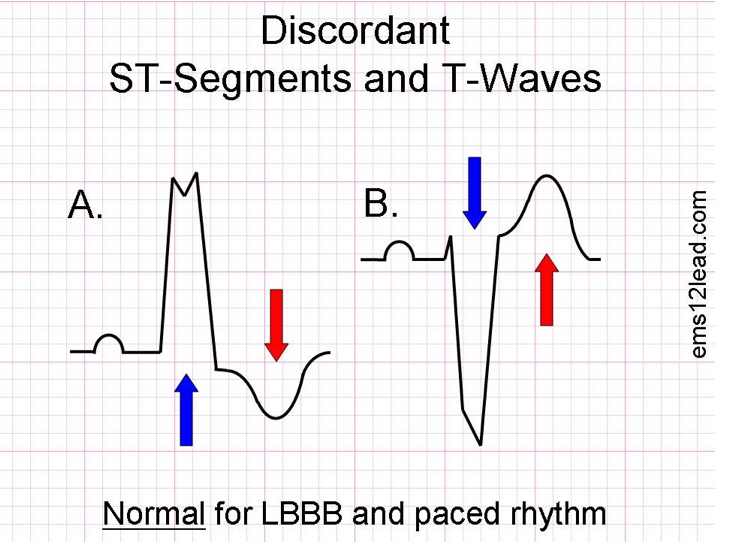

  • In LBBB it is normal to have discordant ST changes and T-wave inversions.
  • Concordant ST segment deviation is abnormal.
    • Concordant ST-elevation of 1 mm in atleast 1 lead or
    • Concordant ST-depression of 1 mm in V1 to V3
  • Also excessively discordant ST-deviation (>5 mm) is abnormal

3.) Smith Modified Sgarbossa Criteria Satisfied (6)

  • Smith et al modified the 3rd criteria so that rather than using a cut off of 5 mm for significant discordance they instead used a discordant ratio of >25%.
  • Increases sensitivity from 52% to 91% while decreasing specificity from 98% to 90%.

Take Home Points for LBBB

  • New LBBB was not specific enough and led to many false positive cath lab activations.
  • The Sgarbossa criteria are more specific but not as sensitive and may instead lead to false negatives and denial of PCI to some some patients with AMI.
  • The modified-Sgarbossa criteria are a more sensitive version but has not yet been externally validated.
  • Your cardiologist may not be familiar with these criteria so you need to be the expert and advocate for your patient!

Some example ECGs

Case 1:

Concordant ST-elevation in I and aVL, concordant ST-depression in III and aVF

https://ecgweekly.com/2015/06/amal-mattus-ecg-case-of-the-week-june-1-2015/

Case 2

A More Subtle Sgarbossa Positive ECG. http://lifeinthefastlane.com/ecg-library/basics/sgarbossa/

Case 3:

An approximately 40 yo male, with no known cardiac history, presents with 20 minutes of anginal chest pain

Subtle sgarbossa positive concordant ST-elevation in aVF, modified-sgarbossa positive discordant ST-elevation in III (1 mm ST-elevation / 3 mm QRS amplitude = 0.33 ratio). http://hqmeded-ecg.blogspot.com/2014/10/some-cardiologists-still-are-not.html

1 min later the patient has a V. Fib arrest.  He is successfully, resuscitated and has this post-arrest ECG...

Now obvious sgarbossa positive concordant ST-elevation in III and aVF, and also concordant ST-depression in aVL. http://hqmeded-ecg.blogspot.com/2014/10/some-cardiologists-still-are-not.html


3. de Winter’s Waves (7) (8)

Can be thought of as a subset of hyper acute t-waves characterized by:

De winter RJ, Verouden NJ, Wellens HJ, Wilde AA. A new ECG sign of proximal LAD occlusion. N Engl J Med. 2008;359(19):2071-3. http://www.ncbi.nlm.nih.gov/pubmed/?term=PMID%3A+18987380

  • Tall, symmetric, narrow “dagger like” pre-cordial t-waves taking off like “rockets” from a depressed (1-3 mm) ST segment.
  • Different from HATWs because there is no ST-depression in HATWs.

Suggestive of acute high grade LAD occlusion (in contrast to sub-acute occlusion of Wellen’s syndrome). Although no ST-elevation it may represent an unstable lesion for which emergent PCI should be considered.  These patients are at high risk for decompensation and may progress to STEMI, therefor you should get serial ECGs.

Case 1 -  33 yo M no PMH with CP that radiates into neck and L arm after a jiu-jitsu match. Patient is sweating and looks awful.

Courtesy Dr. Ari Kestler (San Francisco). de Winter T-waves in V3, V4, and V5, 100% LAD occlusion.

https://ecgweekly.com/2015/06/amal-mattus-ecg-case-of-the-week-june-29-2015/

Case 2 - 70 yo male presenting with chest pain for the last 30 minutes

Upsloping ST-depression with de Winter t-waves, admitted for NSTEMI. Courtesy Dr. Nicolas Pineda (Chile). https://ecgweekly.com/2015/06/amal-mattus-ecg-case-of-the-week-june-29-2015/

This patient was admitted to the hospital with the diagnosis of NSTEMI.  ECGs were obtained the following morning...

Initial Repeat ECG showing loss of pre-cordial R wave progression. Courtesy Dr. Nicolas Pineda (Chile) https://ecgweekly.com/2015/06/amal-mattus-ecg-case-of-the-week-june-29-2015/

Initial Repeat ECG showing loss of pre-cordial R wave progression. Courtesy Dr. Nicolas Pineda (Chile) https://ecgweekly.com/2015/06/amal-mattus-ecg-case-of-the-week-june-29-2015/

Now full blown STEMI, R waves are severely diminished lost, irreparable damage has occurred. Courtesy Dr. Nicolas Pineda (Chile) https://ecgweekly.com/2015/06/amal-mattus-ecg-case-of-the-week-june-29-2015/


4. aVR Elevation with Diffuse ST-depression

In the setting of ischemic chest pain this may indicate left main insufficiency (high grade stenosis) or diffuse multi vessel disease.  Often quoted as indicating left main occlusion, but this may not be accurate. If the left main was truly occluded the patient would probably be in profound cardiogenic shock or dead. (9)

  • The 2013 AHA/ACC STEMI guidelines list aVR ST-elevation as an indication for thrombolytics when PCI cannot be obtained within 2 hours. (10)
  • The article they reference (11), defines “occlusion” as any stenosis greater than 50%.
  • Two mechanisms proposed: Diffuse sub-endocardial ischemia with ST-depression in lateral leads producing reciprocal ST-elevation in aVR, or infarction of the basal septum producing aVR STEMI. (12)
  • If their pain can be medically managed and are HDS then it may be appropriate to cath the next day. But be sure to discuss with your interventionalist.

Case 1 - Elderly man presenting with chest pain and cardiogenic shock who has a brief episode of VF while on cath table

ST-depression I, aVL, II, aVF, V3-V6, and ST-elevation in aVR. 100% left main occlusion. http://lifeinthefastlane.com/ecg-library/lmca/ Example 2

Case 2 - Elderly man with known diffuse CAD who how has an acute GI bleed and chest pain

Interpretation: ST-depression in I, II, aVF, V2-V6 (V2-V3 ST-depression is normal in a RBBB).  Proposed cause: Diffuse sub-endocardial ischemia due to acute blood loss causing demand ischemia (type II NSTEMI).  http://lifeinthefastlane.com/ecg-library/lmca/ Example 8


5. Wellen’s Syndrome (13)

What is it?  Anginal CP that has now resolved with associated ECG changes, normal to minimally elevated cardiac enzymes, and absence of pathologic q-waves or a loss of precordial R-wave progression. Two ECG patterns described by Wellen’s: pattern A and pattern B

  • Pattern A - biphasic t waves (up then down) in the precordial leads
  • Pattern B - deeply inverted symmetric t waves

Verouden NJ, Koch KT, Peters RJ, et al. Persistent precordial "hyperacute" T-waves signify proximal left anterior descending artery occlusion. Heart. 2009;95(20):1701-6. http://www.ncbi.nlm.nih.gov/pubmed/19620137

Why it matters

  • This is a high risk LAD lesion that was occluded at time of pain but now is open.
  • MI within a mean of 6-8.5 days after admission.
  • MI occurs within a mean of 21.5 days after symptoms. (15)

How to Manage

  • Be cautious with stress testing. Case report data suggests this can be fatal. (16)
  • Less likely to die with early PCI vs medical therapy or delayed PCI (2.6% vs 17.9%). (17)

Case 1 - 45 yo female brought to the ED via EMS, had chest pain earlier, but has now since resolved

Type A Wellen’s waves in V2-V3. http://lifeinthefastlane.com/ecg-library/wellens-syndrome/ Example 5f

Field ECG from 45 minutes prior...

Anterolateral STEMI with reciprocal inferior depressions. http://lifeinthefastlane.com/ecg-library/wellens-syndrome/ Example 5a

Clinical bottom line for Wellen’s Syndrome:

  • Signifies a high grade LAD lesion until proven otherwise, but be sure to consider other causes of these ecg changes
  • ECG changes may be transient
  • Case reports suggest stress testing can induce MI
  • Early PCI has been shown to improve mortality

Summary

  • If the history suggests ACS then but the initial ECG is non-diagnostic then repeat the ECG in 10-15 minutes. ACS is a dynamic process.
  • The idea that STEMIs need emergent PCI and NSTEMIs can wait till the next day is a false dichotomy.
  • If objective evidence of ischemia (concerning history, concerning EKG, + trop) and persistent ischemia (persistent pain or persistent concerning EKG) in spite of maximal medical therapy then emergent cath is needed.
  • Don’t settle for basic ECG skills, you need to be the ECG expert.
